For Smart 700cc petrol 450 or 452 (Roadster)

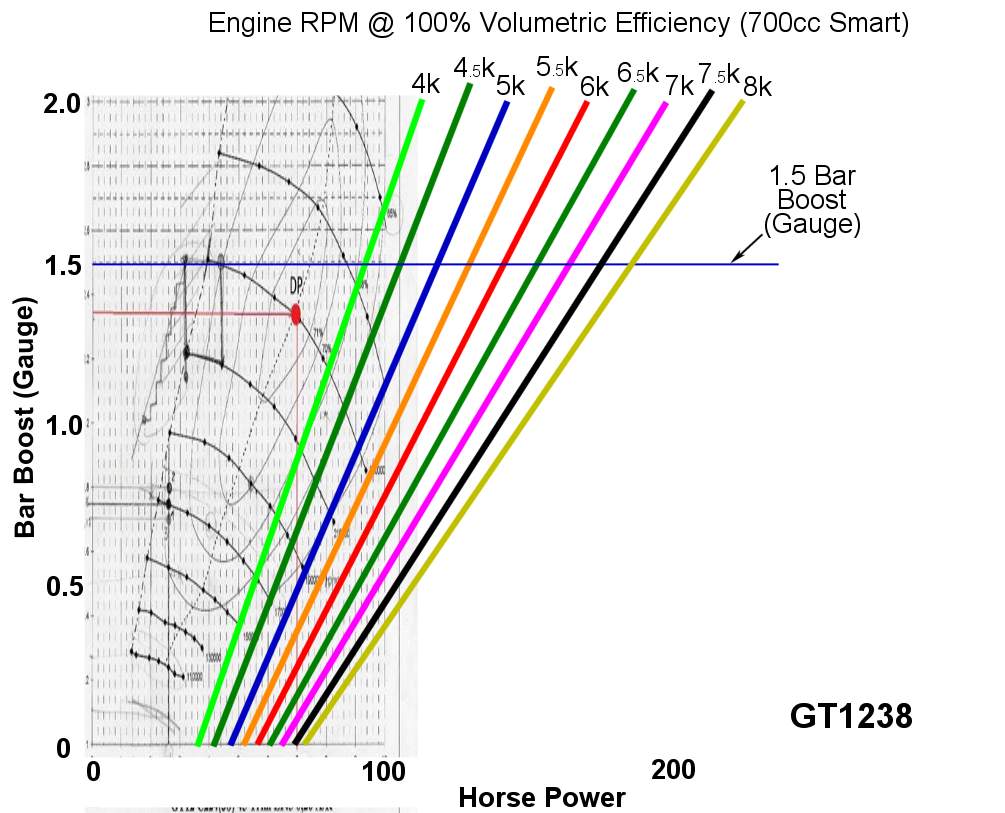

The first is the Standard GT1238 fitted to the Smart Engine. The second is the MAP for the GBC14-200 (Yes this is a 200hp turbo)
A little bit technical but this info shows the standard Turbo will struggle producing more than 115/120hp. This upgrade is a more suitable fit for the Smart 700cc engine for people looking to go beyond that power.
Availability: 1 Complete kit always kept in stock
Turbo upgrade kit
£1835.58
The turbo upgrade kit includes:
- Garrett GBC14-200 Turbo core and Compressor scroll.
- Turbo Exhaust manifold casting Imported from Germany machined to fit the GBC14-200 with upgraded waist gate.
- Silicone TIK pipe made to fit the GBC14-200 Turbo and fit in to the original Air cleaner.
- Original Mercedes Benz BRABUS wastegate actuator.
- Stainless steel adjustable bracket to fit the turbo assembly
- Stainless steel bradded oil feed pipe to fit the original oil feed banjo bolt.
- Stainless steel Fitting for the above to fit the turbo
- Turbo oil discharge tube to go to engine sump
- 2 x Water cooling blanking plugs to disable and remove the Turbo water cooling circuit.
Contact
Company:
223D Developmental
41 St Georges Road
Torquay
Devon
TQ1 3QY
Email: mike@223.com
Phone: 44(0)7970108386
Disclaimer
On this website i use outputs graphs from a simulation software. These graphs are for comparison only and should be used in that way. They all assume a standard engine in good mechanical condition and a Turbo that can generate 1.5bar of boost at whatever RPM is shown and at whatever engine load.
"THEY ARE FOR COMPARISON ONLY AND NOT REAL LIFE, THIS IS A SIMULATION ON A COMPUTER"
